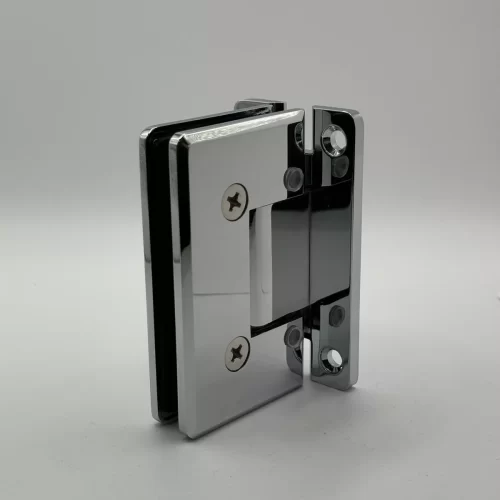

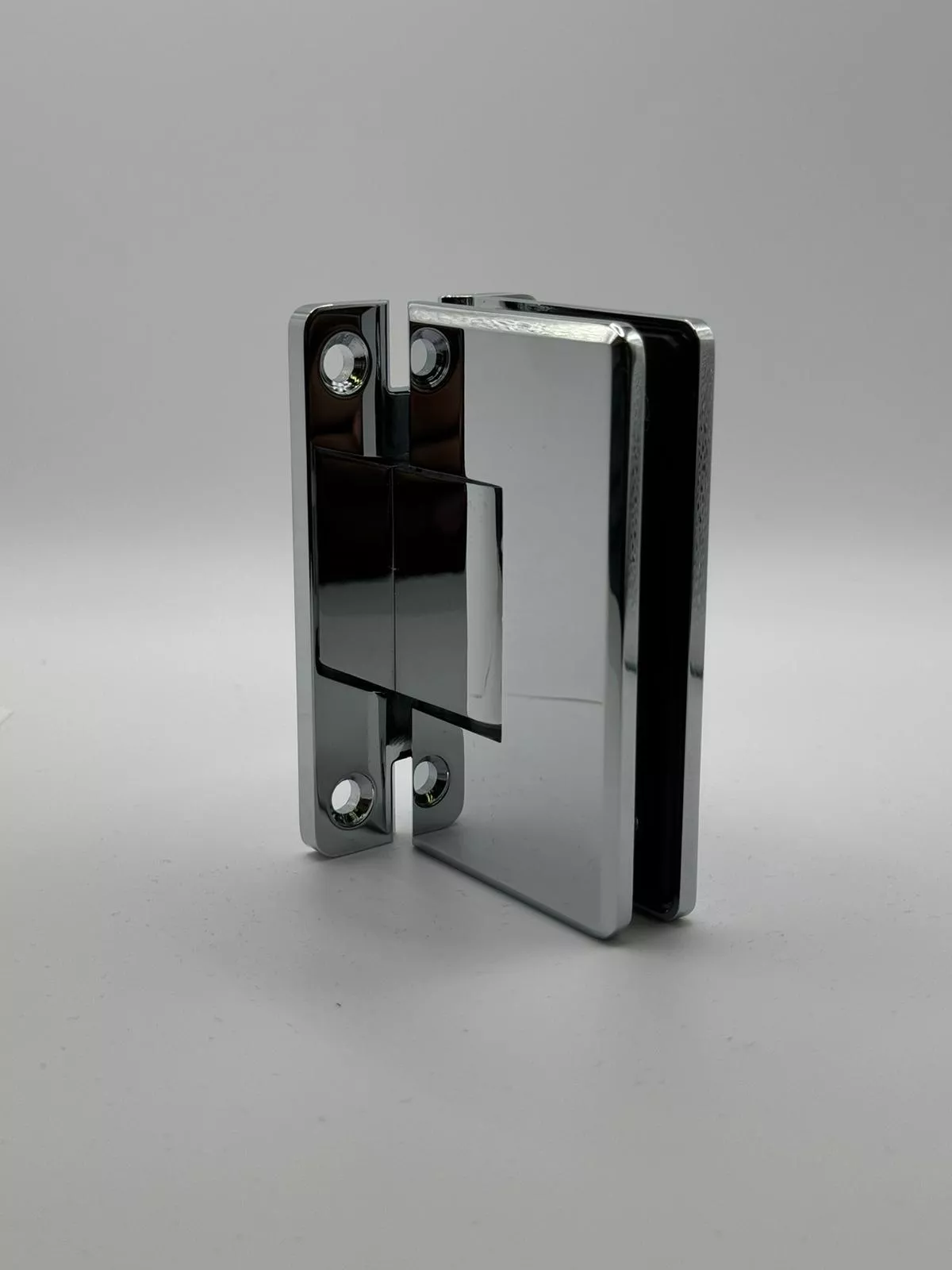

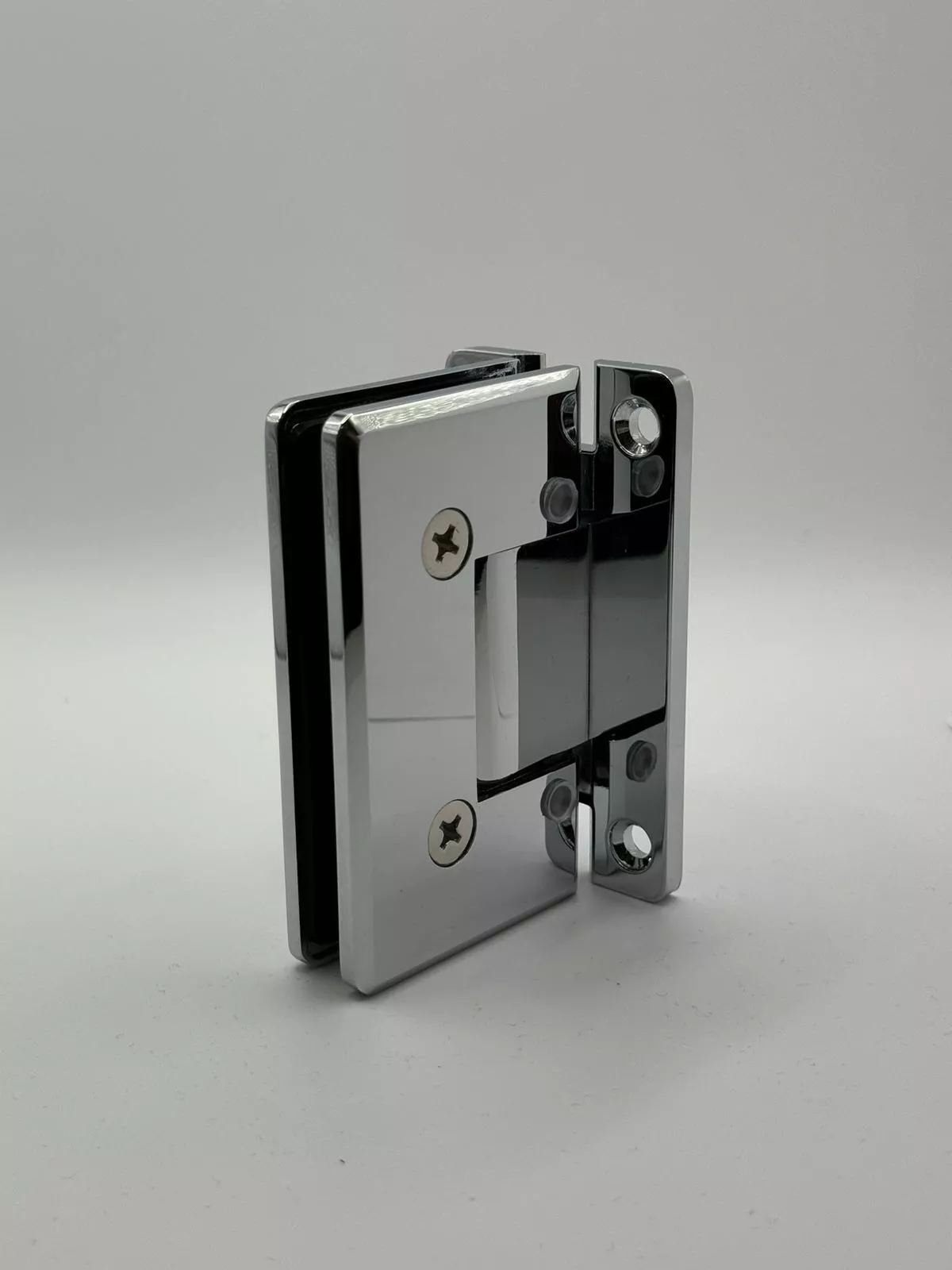

DH037– HD Adj Beveled Hinge Full Plate
The DH037 Hinge has radius corners and beveled edges for a sleek appearance. Our Heavy Duty hinges accommodate 3/8″ (10 mm) to 1/2″ (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Our Heavy Duty hinges are constructed of solid brass and are available in Brushed nickel, Chrome, Matte black & Oil rubbed bronze.
Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 28″ (711 mm).
Using three hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door width of 32″ (813 mm).
CODE:
FINISHES
SPECIFICATIONS:
Glass Thickness: 3/8″ to 1/2″ (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Back Plate: “H”
Edge Profile: Beveled
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
Special Feature: Adjustable to any angle up to 90 degree without having to take door down
