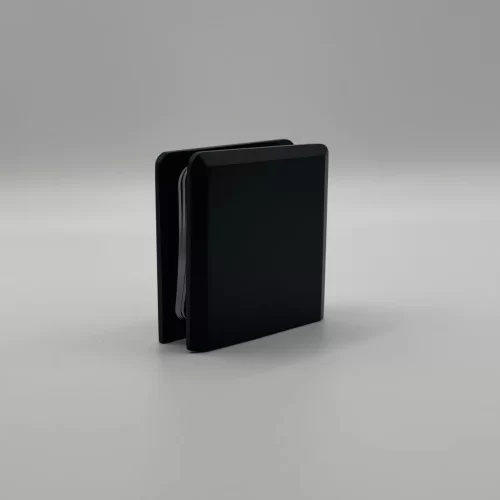

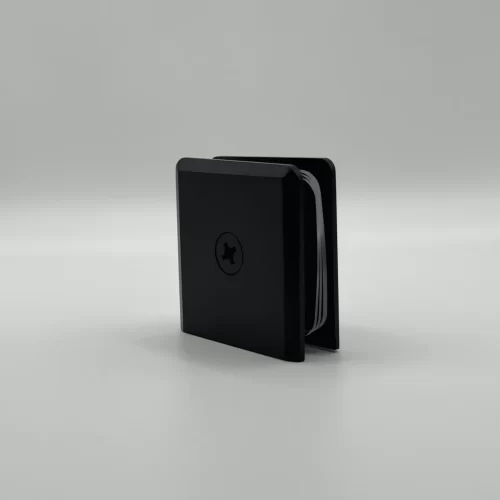

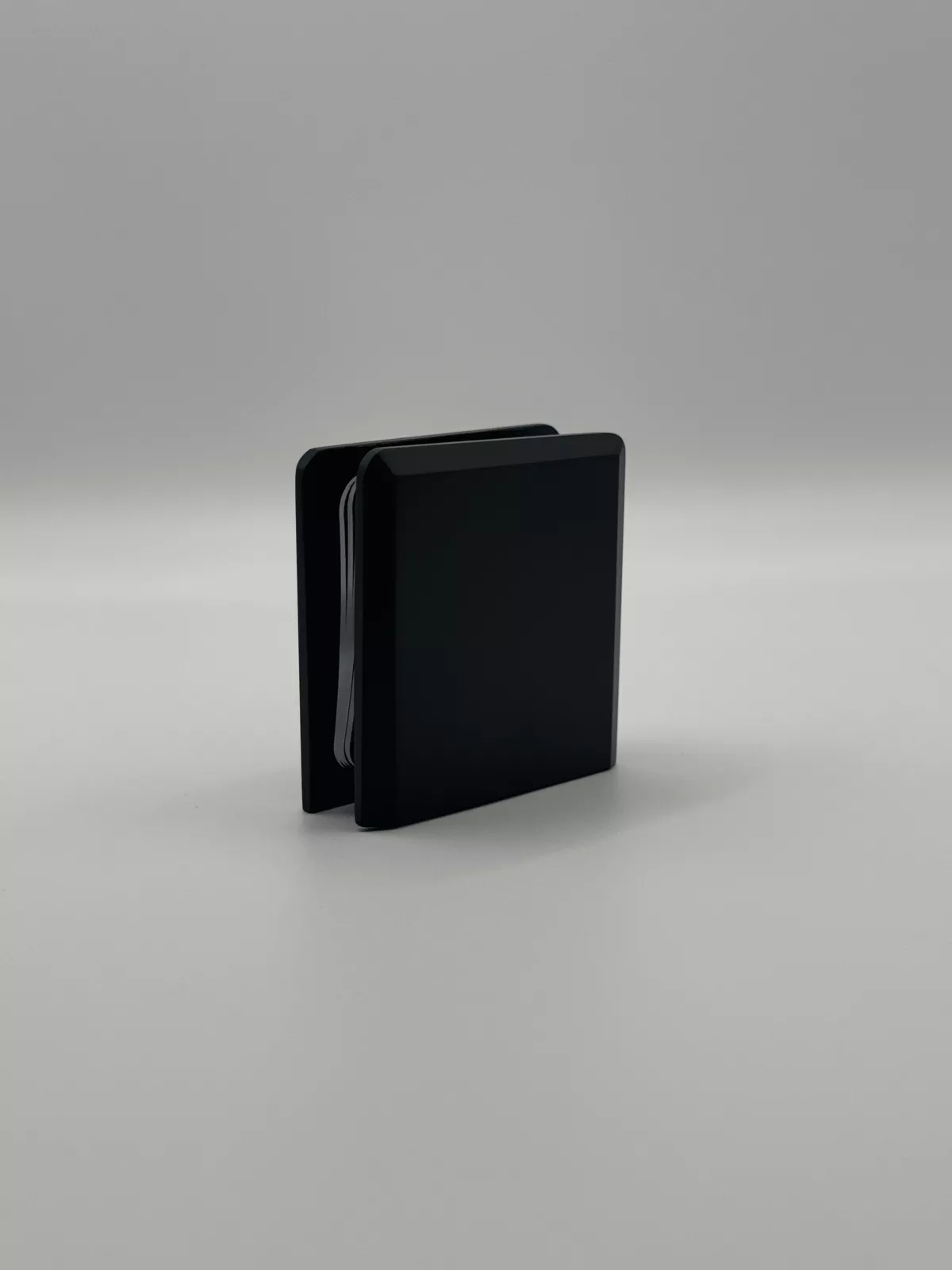

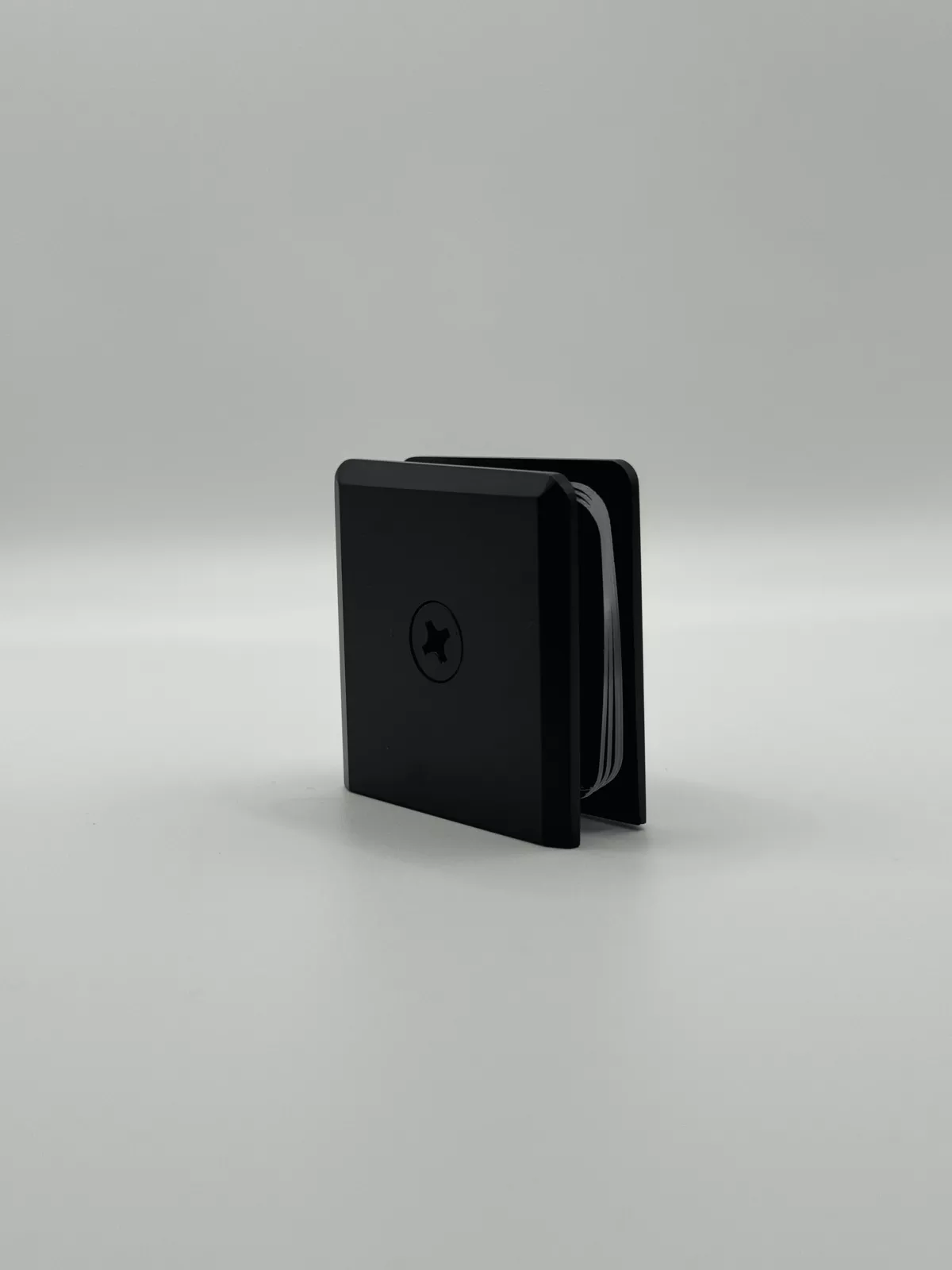

DRC01 mount directly to the wall, ceiling or floor to secure vertical fixed glass panels. Clearance between the glass and the wall may vary anywhere from 1/16” to 3/16” depending on clearance preference. Clear silicone can be used to provide a clean, water resistant seal.

CODE:
DRC01
FINISHES
BN/CH/MB/ORB/BBRZ

SPECIFICATIONS:

Materials: Solid Brass

Edge profile: Beveled

Glass Thickness Range: 3/8″ to 1/2″ (10 to 12 mm)

Glass Fabrication Required: DRC01 notch

Includes: Mounting Screws and Gaskets
