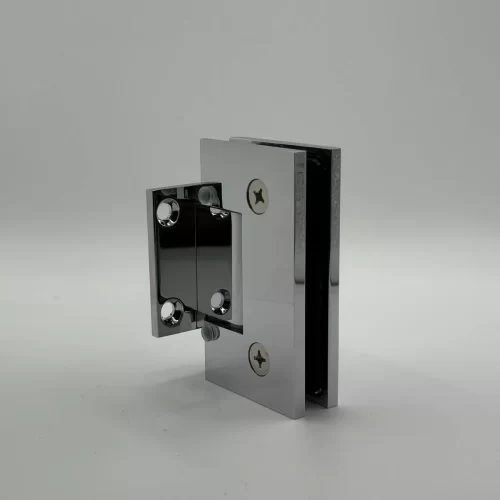

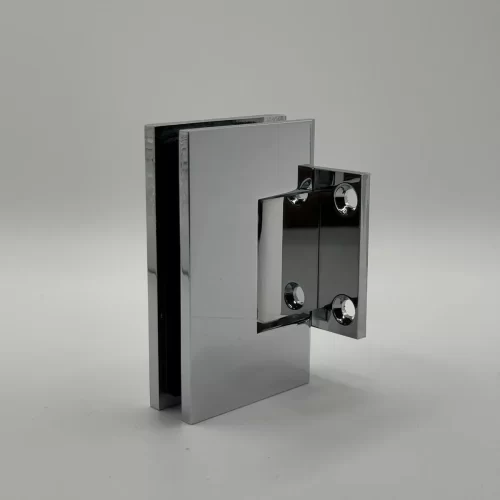

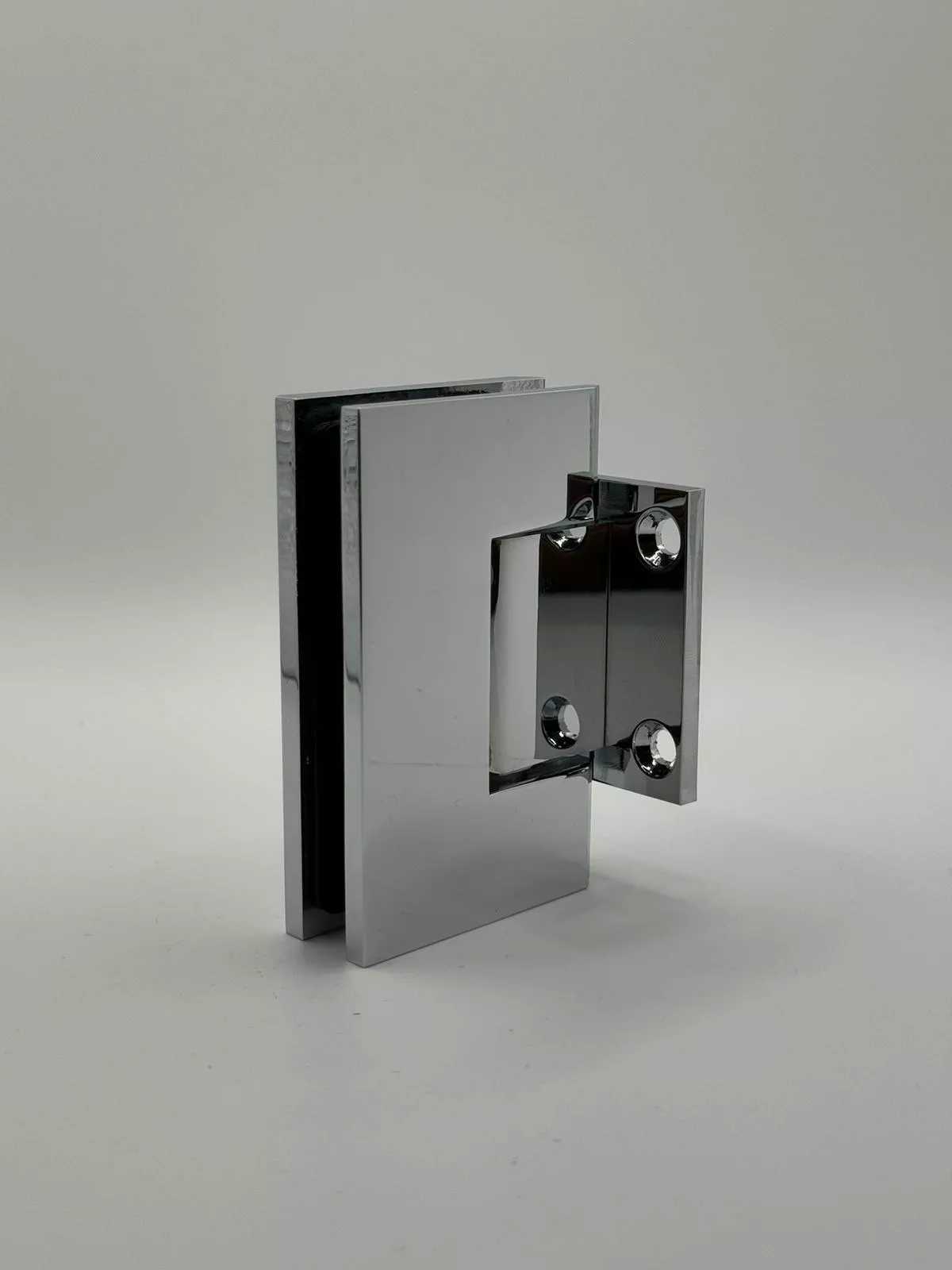

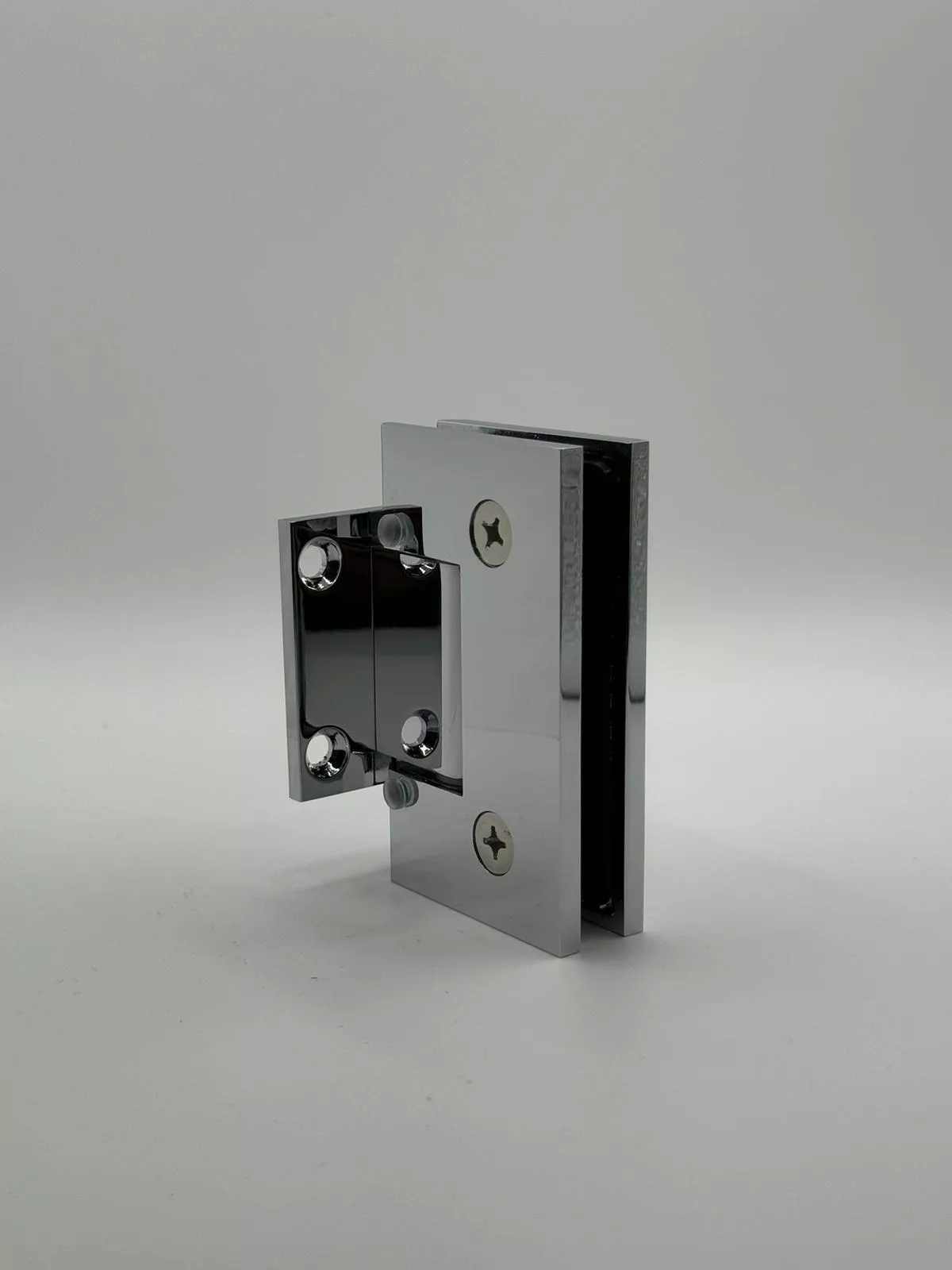

DSQ037 – Adj Square Standard Hinge Short Plate
The DSQ037 Hinge accommodates 3/8″ (10 mm) to 1/2″ (12 mm) thick tempered safety glass, and are self-centering when within 15 degree of the closed position. Our hinges are constructed of solid brass and are available in Brushed nickel, Chrome, Matte black, Oil rubbed bronze & Brushed bronze.
Using two hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 80 lbs. (36 kg) with a maximum door width of 28″ (711 mm).
Using three hinges with 3/8″ to 1/2″ glass (10 to 12 mm) the hinge will hold up to 120 lbs. (54 kg) with a maximum door width of 32″ (813 mm).
CODE:
FINISHES
SPECIFICATIONS:
Glass Thickness: 3/8″ to 1/2″ (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Back Plate: Short Plate
Edge Profile: Square
Hinge Swings: 90 degree in and 90 degree out
Closing Type: Self-Centering when within 15 degree of closed position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions.
Special Feature: Adjustable to any angle up to 90 degree without having to take door down.
